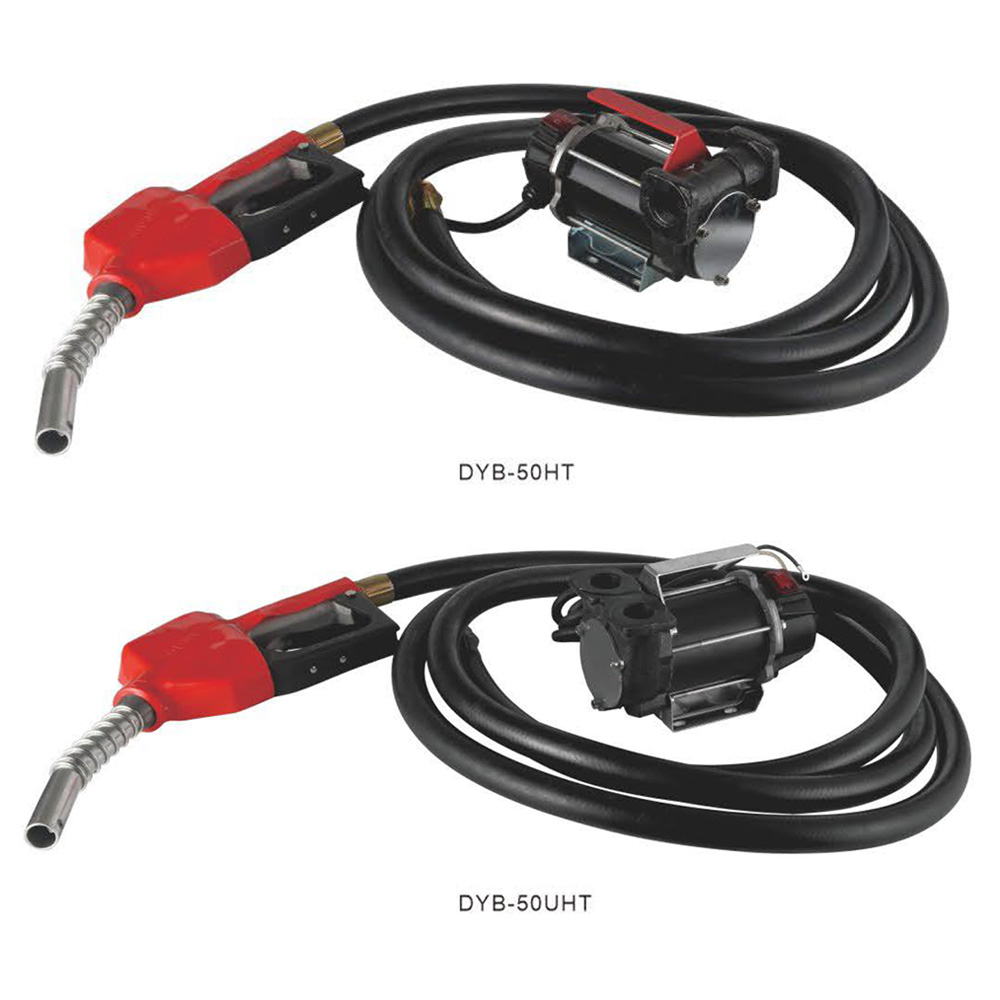

DC Fuel Transfer Pump
DYB-50HT,DYB-50UHT
SPECIFICATION
Electric self-priming compact portable rotary vane pump.
Built-in bypass valve design for safe and dependable fuel delivery.
Available to equip with fuel transfer accessories: Flow meter,
Nozzle and stationary installations.
MATERIALS
· BODY: CAST IRON
· ROTOR: SINTERED STEEL
· VANES: ACETAL RESIN
· SEAL: NBR
· SHAFT: STEEL
· MOTOR: CARBON BRUSH PERMANENT MAGNET
· DUTY CYCLE: 30MIN
· INLET HOSE: 2M PVC
· OUTLET HOSE: 4M NBR
· NOZZLE: AUTOMATIC/MANUAL
TECHNICAL DATA | ||||||||
| MODEL | FLUIDS TYPE | FLOW-RATE L/MIN | VOLTAGE VOLT | POWER WATT | SPEED RPM | THREADED PORTS BSP | PRESSURE BAR | Suction M |
| DYB-50HT-12V |  | 50 | 12 | 300 | 3200 | 3/4" | 1.3 | 3 |
| DYB-50HT-24V | | 50 | 24 | 300 | 3200 | 3/4" | 1.3 | 3 |
| DYB-50UHT-12V | | 50 | 12 | 300 | 3200 | 3/4" | 1.3 | 3 |
| DYB-50UHT-24V | | 50 | 24 | 300 | 3200 | 3/4" | 1.3 | 3 |
