Fuel Transfer Pump Kit

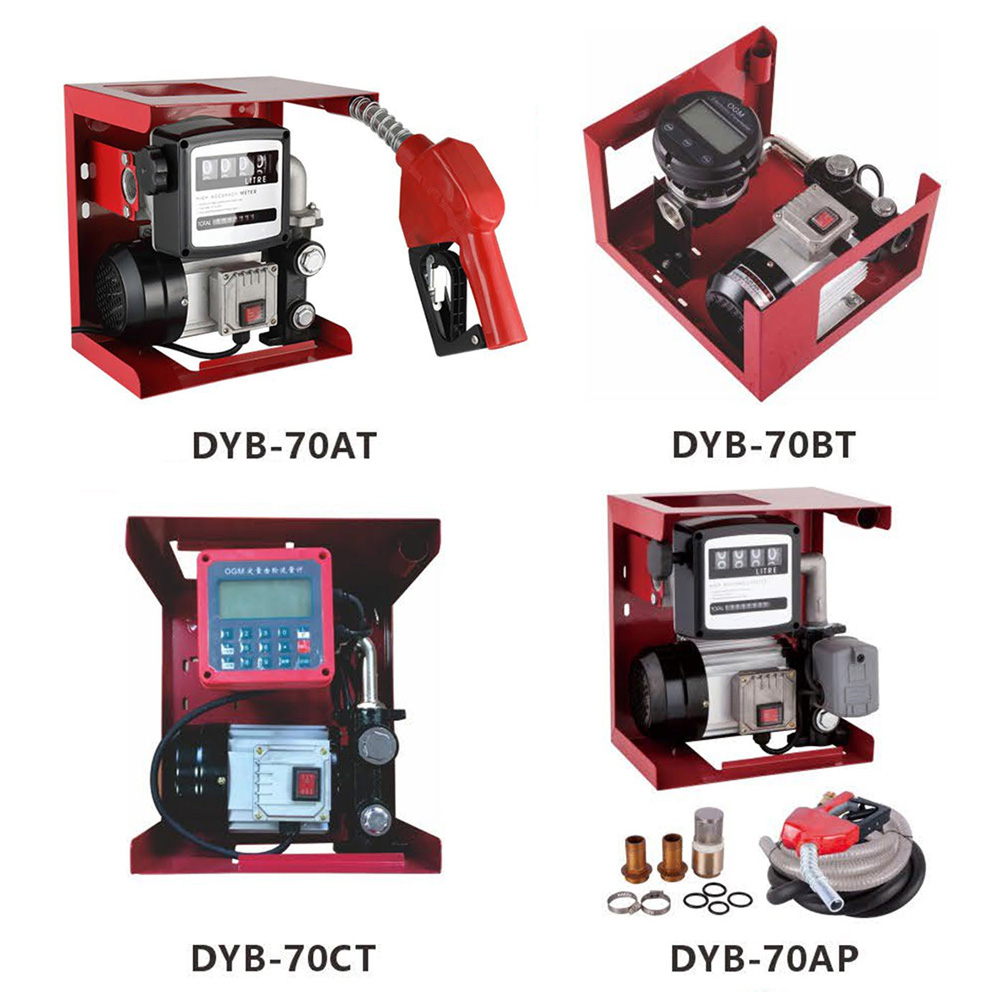

DYB-70AP,DYB-70AT,DYB-70BT,DYB-70CT
Fuel transfer pumps KIT including: Flow meter, nozzle, hoses and accessories.
SPECIFICATION
Electric compact portable rotary vane pump KIT.
Built-in bypass valve design for safe and dependable fuel delivery.
Available to equip with fuel transfer accessories:
Flow meter, Nozzle and stationary installations.
MATERIALS
· BODY: CAST IRON
· ROTOR: SINTERED STEEL
· VANES: ACETAL RESIN
· SEAL: NBR
· SHAFT: STEEL
· DUTY CYCLE: 30MIN
FEATURES
VOLTAGE: AC
CALIBER: INLET/OUTLET 1"
DANGER
ONLY FOR USE WITH DIESEL FUEL
DO NOT USE FOR/WITH
■ GASOLINE (PETROL)
■ SOLVENTS WITH FLASH POINT＜55℃
| TECHNICAL DATA | ||||||||||
| MODEL | FLUIDS TYPE | FLOW-RATE L/MIN | VOLTAGE VOLT | POWER WATT | SPEED RPM | THREADED PORTS BSP | ACCURACY | PRESSURE BAR | Suction M | PRESSURE SWITCH |
| DYB-70AT |  | 60 | 220/110 | 550 | 2800/3250 | 1" | ±1% | 1.5 | 3 | × |
| DYB-70BT | | 60 | 220/110 | 550 | 2800/3250 | 1" | ±0.5% | 1.5 | 3 | × |
| DYB-70CT | | 60 | 220/110 | 550 | 2800/3250 | 1" | ±0.5% | 1.5 | 3 | × |
| DYB-70AP | | 60 | 220/110 | 550 | 2800/3250 | 1" | ±0.5% | 1.5 | 3 | √ |
