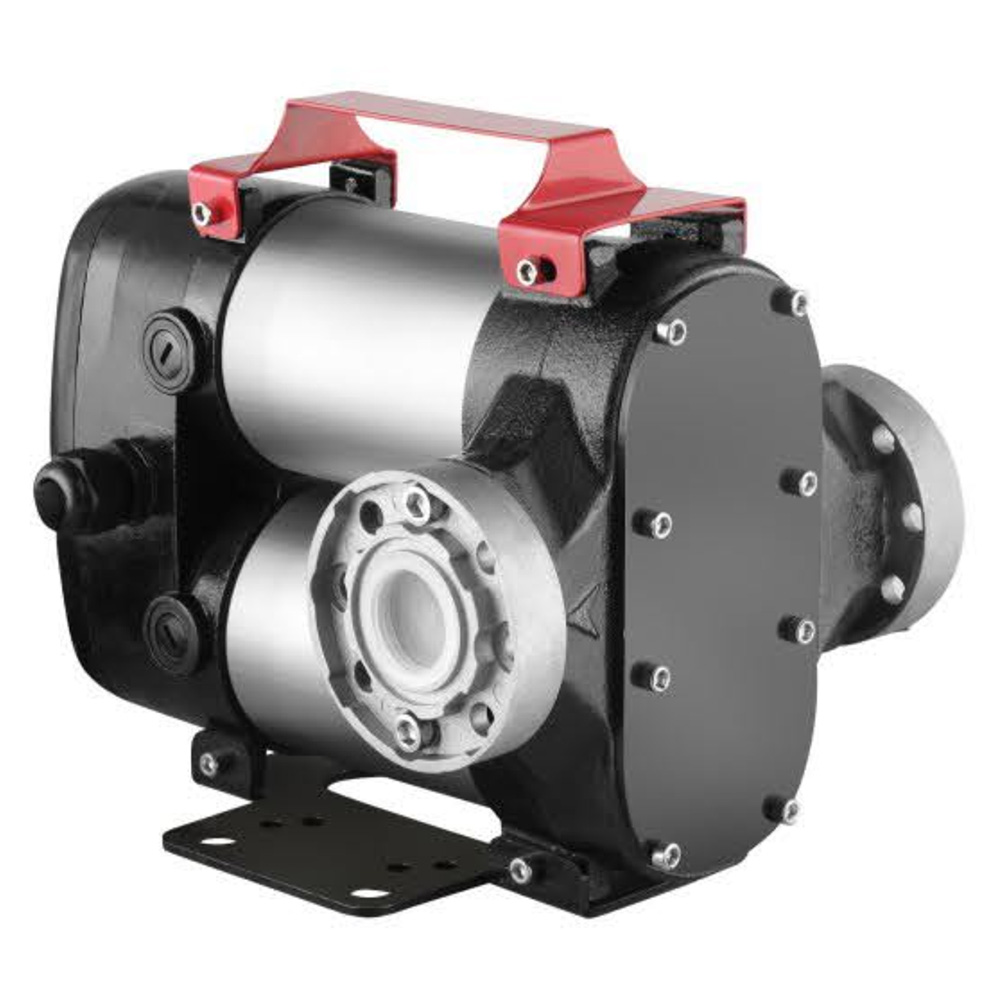

Diesel Transfer Pump
DYB-80D
DYB-80D is a diesel transfer pump. It is easy to install and is suitable for being applied on diesel dispensers and fixed fuel transfer systems, as well as other applications.
FEATURES
· STURDY STRUCTURE
· COMPACT DESIGN
· HEAVY DUTY
· HIGH RELIABILITY
· Vane pump with rotor
· With by-pass valve
PERFORMANCE
FLOW RATE: 80 L/MIN
VOLTAGE: DC
POWER: 500W
CALIBER: INLET/OUTLET 1"

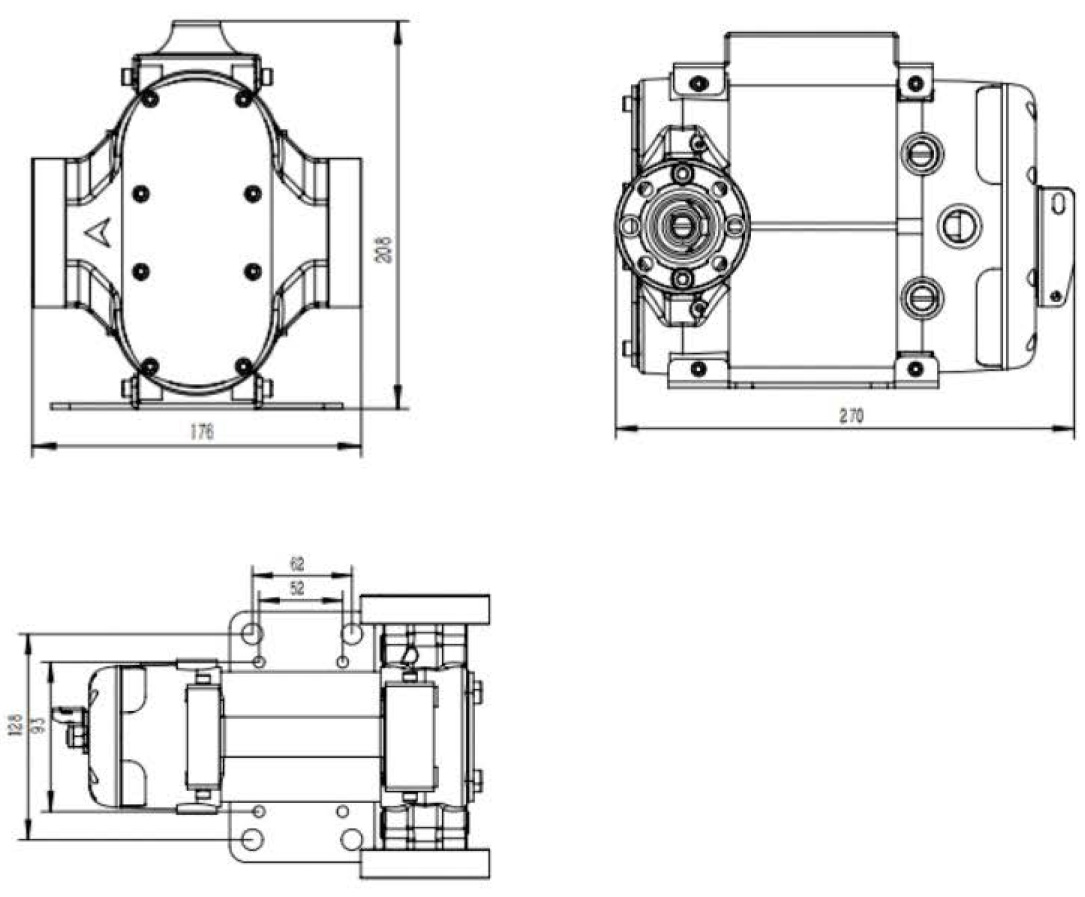

DIMENSIONS
| TECHNICAL DATA | ||||||||
| MODEL | FLUIDS TYPE | FLOW-RATE L/MIN | VOLTAGE VOLT | POWER WATT | SPEED RPM | THREADED PORTS BSP | PRESSURE BAR | Suction M |
| DYB-80D-12V |  | 80 | 12V(44A) | 500 | 2000 | 1" | 1.5 | 3 |
| DYB-80D-24V | | 80 | 24V(21A) | 500 | 2000 | 1" | 1.5 | 3 |
