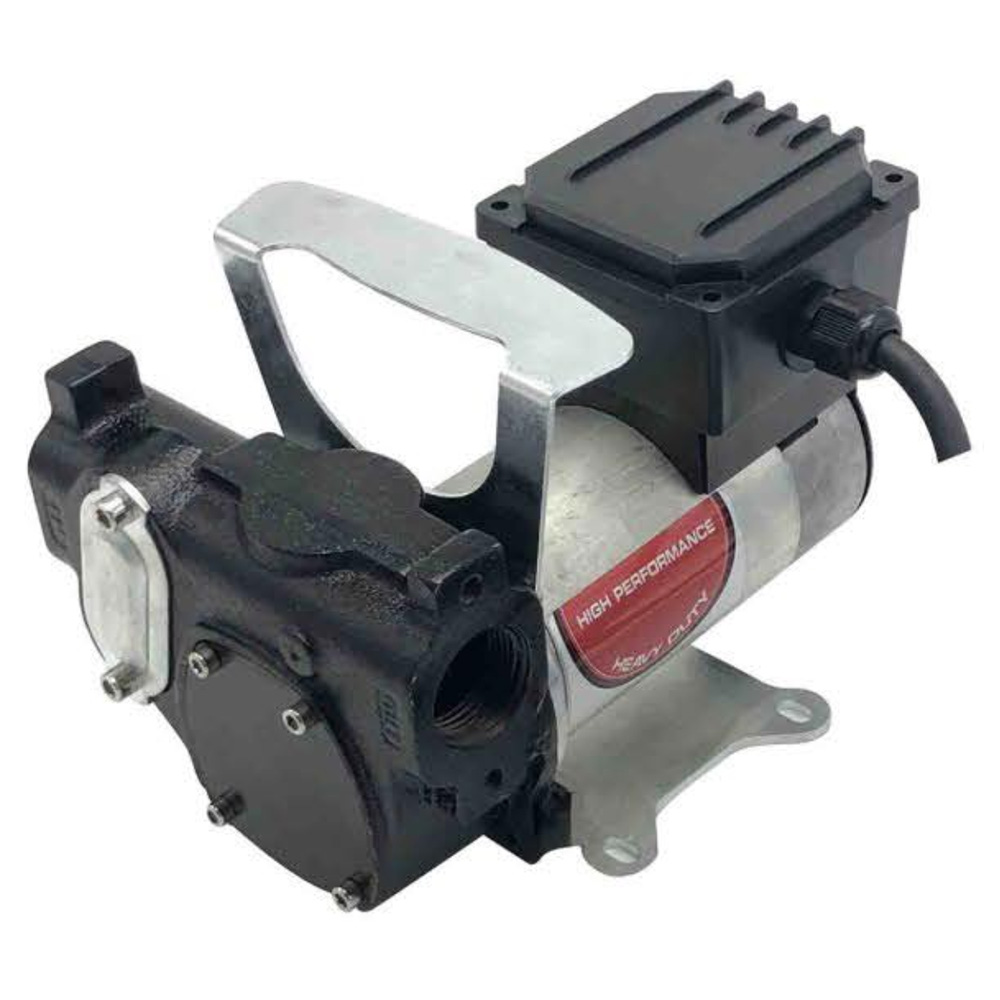

DC Electric Fuel Transfer Pumps
DYB-D3570
· 35L/MIN(12V)
70L/MIN(24V)
· 1800RPM(12V)
3500RPM(24V)
· 1” BSP
· 16A(12V),25A(24V)
· 2 Bar
· Suction 3M
These pumps are rotary vane type, self-priming, with high flow rate and easy operation and installation. Besides,featuring an integrated bypass valve and suction filter, they are also equipped with a mechanical seal that ensures a high standard of reliability even at low operating temperatures.The version 24/12 can be used with both tension.
| TECHNICAL SPECIFICATIONS | |
| · Pump body in cast iron with anti- corrosion treatment and painting. | · D.C. motor with brushes and permanent magnets. |
| · Connector block with ON/OFF switch. | |
| · Support base. | · Protection fuse. |
| · Pump of the blade type with sintered steel rotor and acetalic resin vanes. | · Degree of protection IP55. |
| · Filter 100 μ incorporated in pump body, easy access for maintenance. | |
| · Mechanical seal. | · Threaded 1" coupling directly on pump body. overload protection. |
| · Incorporated bypass valve. | · 1" flanged connectors, external filter. |
