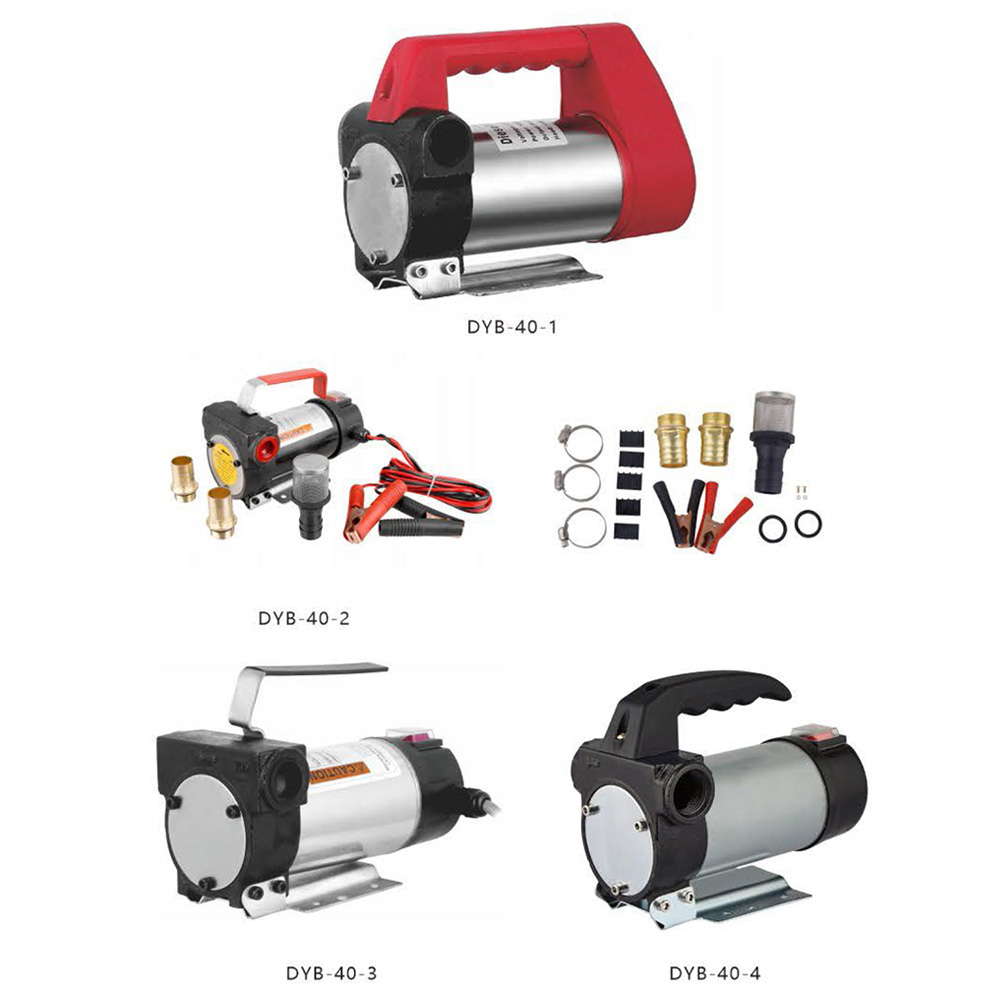

Electric Fuel Transfer Pump
DYB-40-1,DYB-40-2,DYB-40-3,DYB-40-4
SPECIFICATION
Electric self-priming compact portable rotary vane pump.
Built-in bypass valve design for safe and dependable fuel delivery.
Available to equip with fuel transfer accessories: Flow meter,
Nozzle and stationary installations.
MATERIALS
· BODY: CAST IRON
· ROTOR: SINTERED STEEL
· VANES: ACETAL RESIN
· SEAL: NBR
· SHAFT: STEEL
MOTOR: CARBON BRUSH PERMANENT MAGNET
· DUTY CYCLE: 30MIN
| TECHNICAL DATA | ||||||||
| MODEL | FLUIDS TYPE | FLOW-RATE L/MIN | VOLTAGE VOLT | POWER WATT | SPEED RPM | THREADED PORTS BSP | PRESSURE BAR | Suction M |
| DYB-40-1-12V |  | 40 | 12 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40-1-24V | | 40 | 24 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40-1 | | 40 | 220/110 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40-2-12V | | 40 | 12 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40-2-24V | | 40 | 24 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40-2 | | 40 | 220/110 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40-3-12V | | 40 | 12 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40-3-24V | | 40 | 24 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40-3 | | 40 | 220/110 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40-4-12V | | 40 | 12 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40-4-24V | | 40 | 24 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40-4 | | 40 | 220/110 | 160 | 3200 | 3/4" | 1 | 2 |
