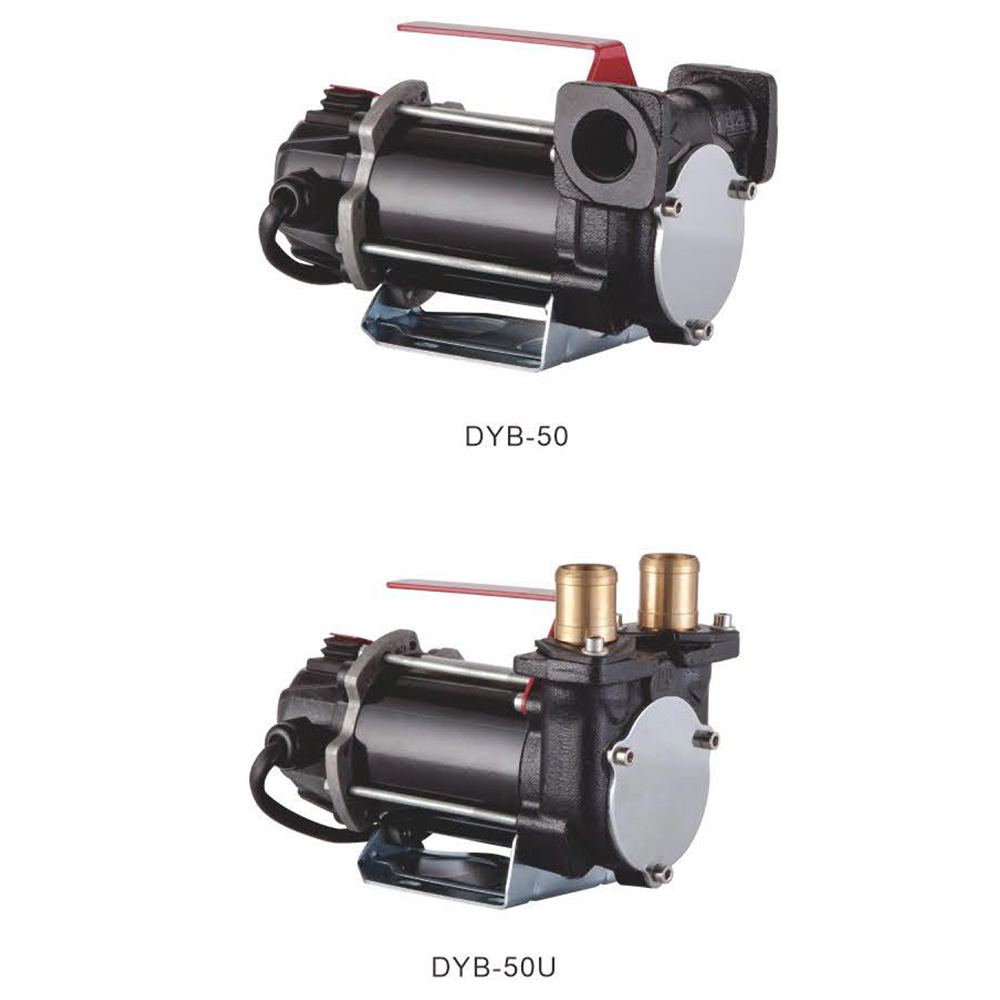

DC Fuel Transfer Pump
DYB-50,DYB-50U
SPECIFICATION
Electric self-priming compact portable rotary vane pump.
Built-in bypass valve design for safe and dependable fuel delivery.
Available to equip with fuel transfer accessories: Flow meter,
Nozzle and stationary installations.
MATERIALS
· BODY: CAST IRON
· ROTOR: SINTERED STEEL
· VANES: ACETAL RESIN
· SEAL: NBR
· SHAFT: STEEL
· MOTOR: CARBON BRUSH PERMANENT MAGNET
· DUTY CYCLE: 30MIN
PERFORMANCE
FLOW RATE: UP TO 50 L/MIN
VOLTAGE: DC 12~24V
POWER: 300W
CALIBER: INLET/OUTLET 3/4"
DANGER
ONLY FOR USE WITH DIESEL FUEL
DO NOT USE FOR/WITH
■ GASOLINE (PETROL)
■ SOLVENTS WITH FLASH POINT＜55℃
| TECHNICAL DATA | ||||||||
| MODEL | FLUIDS TYPE | FLOW-RATE L/MIN | VOLTAGE VOLT | POWER WATT | SPEED RPM | THREADED PORTS BSP | PRESSURE BAR | Suction M |
| DYB-50-12V |  | 50 | 12 | 300 | 3200 | 3/4" | 1.3 | 3 |
| DYB-50-24V | | 50 | 24 | 300 | 3200 | 3/4" | 1.3 | 3 |
| DYB-50U-12V | | 50 | 12 | 300 | 3200 | 3/4" | 1.3 | 3 |
| DYB-50U-24V | | 50 | 24 | 300 | 3200 | 3/4" | 1.3 | 3 |
