Meters

BLB-M-40mm/1.5"

BLB-M-50mm/2"

BLB-M-80mm/3"

BLB-M-100mm/4"

EXCELLENT STEPLESS ADJUSTING MECHINE

.High accuracy and repeatability over the widest range of flow Superior accuracy at constant flow

.Low maintenance, no metaltometal contact in measuring chamber, Long life service

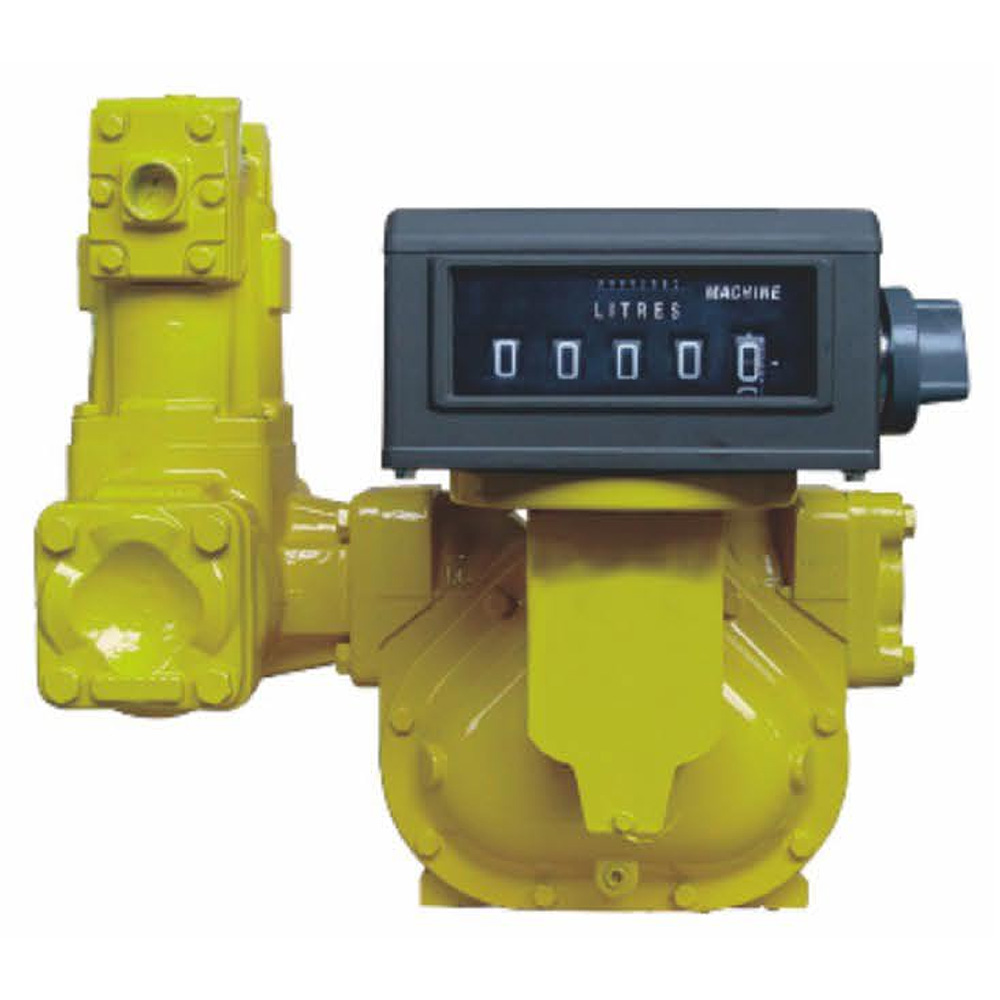

M Series Positive Displacement Flow Meter

Excellent stepless adjusting me chanism allows a micro adjustment of the meter

High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow

Low maintenance, no metal-to-metal contact in measuring chamber, long life service

Low pressure loss, a true gravity flow meter

Accuracy regardless of pressure fluctuations, temperature variation, viscosity

Choice of aluminum, cast iron and stainless steel materials of construction.

TECHNICAL DATA
Model	BLB-M-40	BLB-M-50	BLB-M-80	BLB-M-100
Size	40mm/1.5"	50mm/2"	80mm/3"	100mm/4"
Flow Range	25-250L/min	50-500L/min	100-1000L/min	130-1300L/min
Max.Pressure	10Bar/150PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Unit Liter/US Gallon
Meter Body	Aluminum,Cast Iron, Steel, Stainless Steel available
Seal & Gasket	Buna"N"; Viton; Teflon available
Stranier Mesh	80 for Diesel,40 for Gasoline
End Connections	ANSI Flanged,NPT, BSPT,Slip Weld available
Viscosity	30SSU-1,500,000SSU
