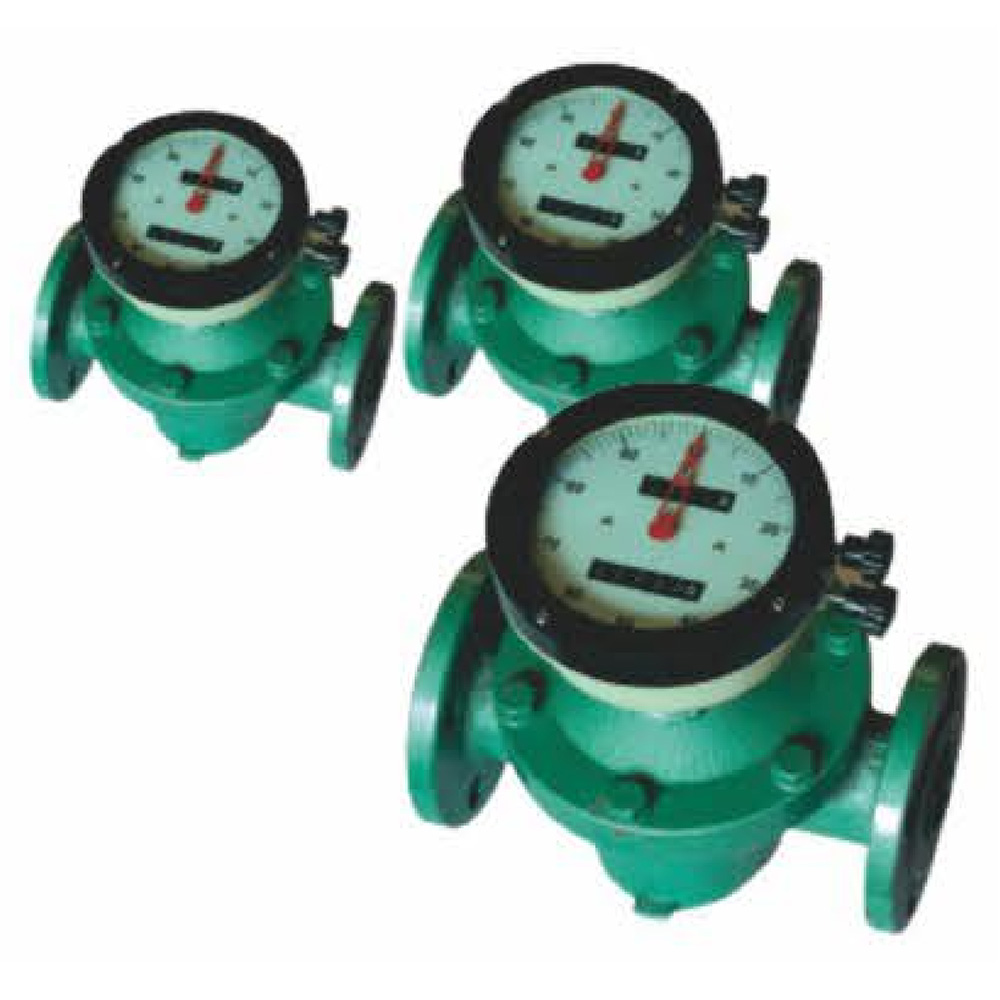

Oval Gear Flow Meter
OGM-LC-40,OGM-LC-50,OGM-LC-80,OGM-LC-100
Advantage:
· Compact sixe,easy maintenance
· Easy to read and operate mechanical display
· Horizontally and vertically flexibility of installation options
| TECHNICAL DATA | ||||
| Model | OGM-LC-40 | OGM-LC-50 | OGM-LC-80 | OGM-LC-100 |
| Size | 1.5" | 2" | 3" | 4" |
| Min Flow Rate | 20L/min | 60L/min | 140L/min | 160L/min |
| Max Flow Rate | 120L/min | 300L/min | 700L/min | 1600L/min |
| Accuracy | ±0.2% or ±0.5% | ±0.2% or ±0.5% | ±0.2% or ±0.5% | ±0.2% or ±0.5% |
| Repeatability | ≤0.3% | ≤0.03% | ≤0.03% | ≤0.03% |
| Max.Operating Pressure | 1.8MPa | 1.8MPa | 1.8MPa | 1.8MPa |
