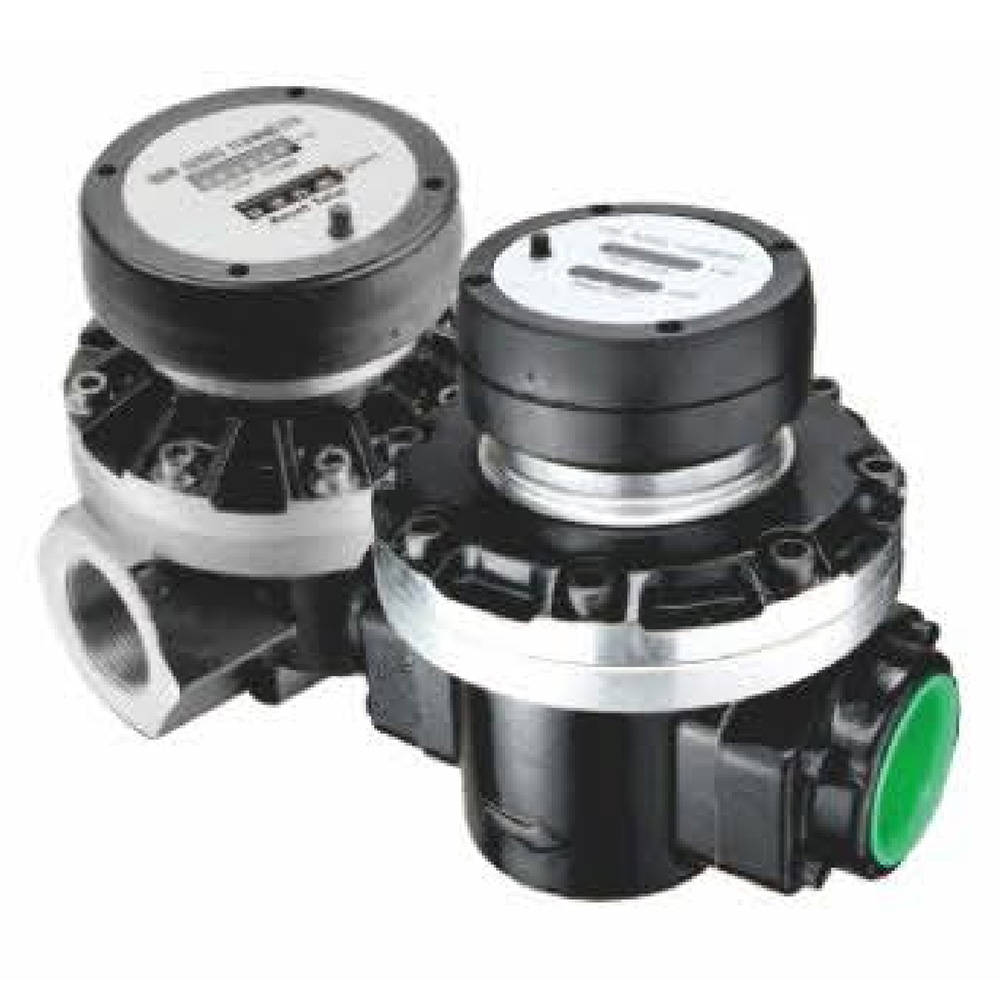

Aluminum Oval Gear Flow Meter With Sensor
OGM-B-25,OGM-B-40,OGM-B-50
| TECHNICAL DATA | |||
| Model | OGM-B-25 | OGM-B-40 | OGM-B-50 |
| Size | 1" | 1.5" | 2" |
| Min Flow Rate | 20L/min | 25L/min | 30L/min |
| Max Flow Rate | 120L/min | 250L/min | 300L/min |
| Accuracy | ±0.2% | ±0.5% | ±0.5% |
| Repeatability | ≤0.3% | ≤0.3% | ≤0.3% |
| Max.Viscosity | 1000CPS | 1000CPS | 1000CPS |
| Max.Operating Pressure | 1.8MPa | 1.8MPa | 1.8MPa |
