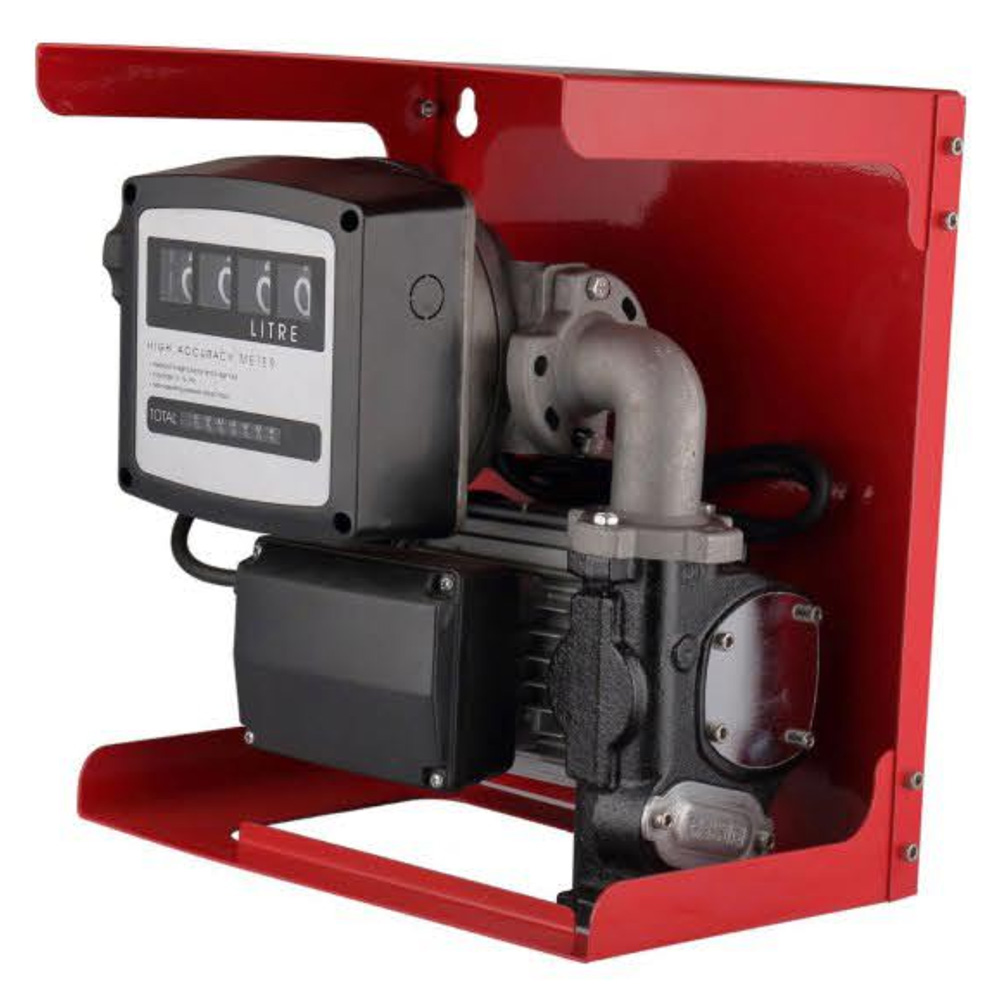

Fuel Transfer Pump Kit
DYB-56AT,DYB-72AT
Fuel transfer pumps KIT including: Flow meter, nozzle, hoses and accessories.
SPECIFICATION
Electric compact portable rotary vane pump KIT.
Built-in bypass valve design for safe and dependable fuel delivery.

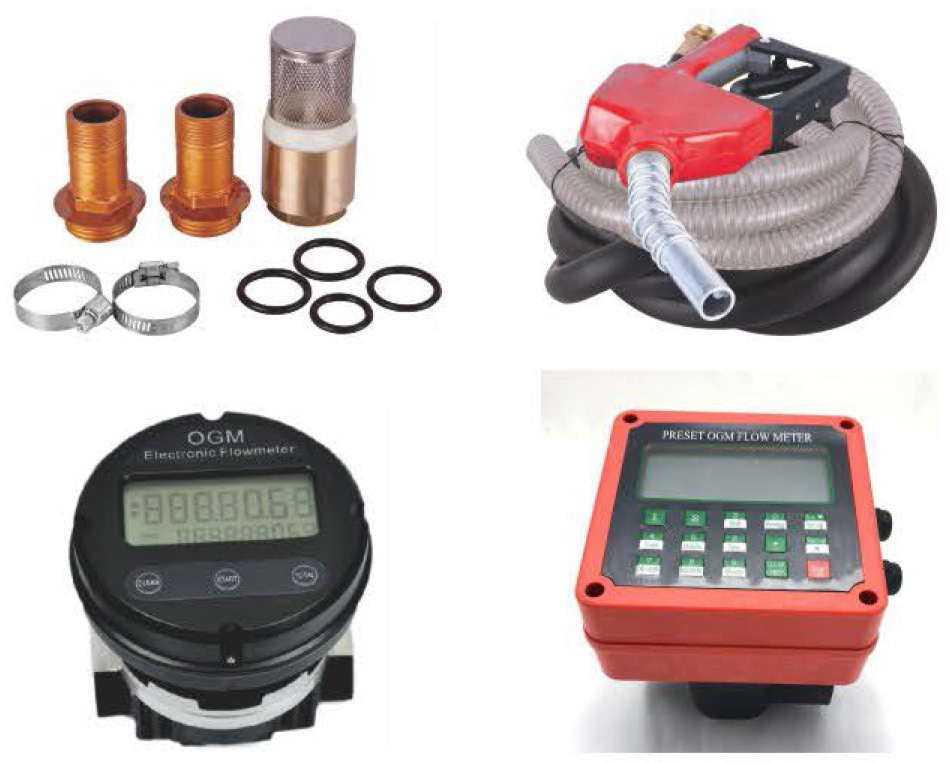

Available to equip with fuel transfer accessories:
Flow meter, Nozzle and stationary installations.
MATERIALS
· BODY: CAST IRON
· ROTOR: SINTERED STEEL
· VANES: ACETAL RESIN
· SEAL: NBR
· SHAFT: STEEL
· DUTY CYCLE: 30MIN
FEATURES
VOLTAGE: AC
CALIBER: INLET/OUTLET 1"

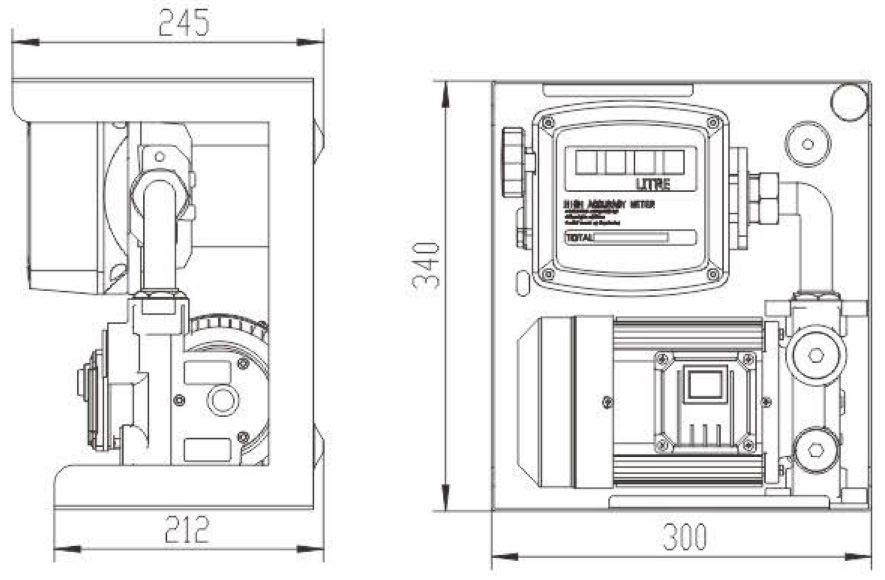

DIMENSIONS
| TECHNICAL DATA | |||||||||
| MODEL | FLUIDS TYPE | FLOW-RATE L/MIN | VOLTAGE VOLT | POWER WATT | SPEED RPM | THREADED PORTS BSP | ACCURACY | PRESSURE BAR | Suction M |
| DYB-56AT |  | 56 | 220/110 | 370 | 2800/3250 | 1" | ±1% | 2 | 3 |
| DYB-56BT | | 56 | 220/110 | 370 | 2800/3250 | 1" | ±0.5% | 2 | 3 |
| DYB-56CT | | 56 | 220/110 | 370 | 2800/3250 | 1" | ±0.5% | 2 | 3 |
| DYB-72AT | | 72 | 220/110 | 550 | 2800/3250 | 1" | ±1% | 2 | 3 |
| DYB-72BT | | 72 | 220/110 | 550 | 2800/3250 | 1" | ±0.5% | 2 | 3 |
| DYB-72CT | | 72 | 220/110 | 550 | 2800/3250 | 1" | ±0.5% | 2 | 3 |
