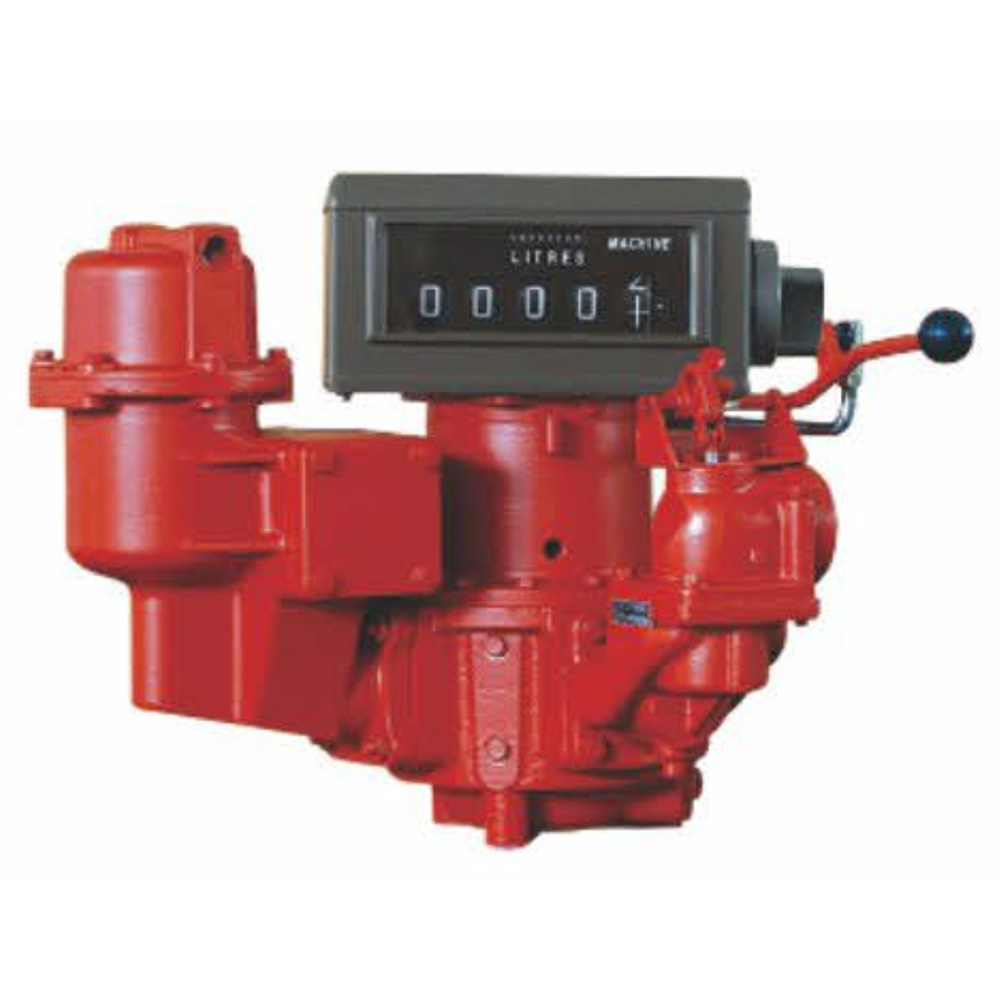

FMC Series PD Rotary Vane Flow Meter
FMC-100
Advantage:
FMC series PD rotary vane meters are single case, angle-type,rotary vane, postitve displacement meters.
Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
Compact,versatile design can be readily fit into nearly all installations.
Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
Long service life,low friction ball bearings,fixed cam-type timing, and rugged construction give sustained accuraccy and long time operation.
APPLCATION
Application includes:batching.dispensing inventory control, and custody transfer of oils, solvents, chemicals, paints, fats and fertilizer.
| TECHNICAL DATA | |
| Model | BLB-FMC-100 |
| Size | 100mm/4" |
| Flow Rate Range | 150-1500L/min |
| Max.Working Pressure | 150PSI |
| Accuracy | ±0.2% |
| Repeatability | 0.07% |
