Meters

BLB-TCS-40,BLB-TCS-50,BLB-TCS-80,BLB-TCS-100

Positive Displacement Flow Meter

Excellent stepless adjusting me chanism allows a micro adjustment of the meter High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow

Low maintenance, no metal-to-metal contact in measuring chamber, long life serviceLow pressure loss, a true gravity flow meter Accuracy regardless of pressure fluctuations, temperature variation, viscosity

Choice of aluminum, cast iron and stainless steel materials of construction.

Advantages:

EXCELLENT STEPLESS ADJUSTING MACHINE

.High accuracy and repeatability over the widest range of flow Superior accuracy at constant flow

.Low maintenance, no metaltometal contact in measuring chamber, Long life service

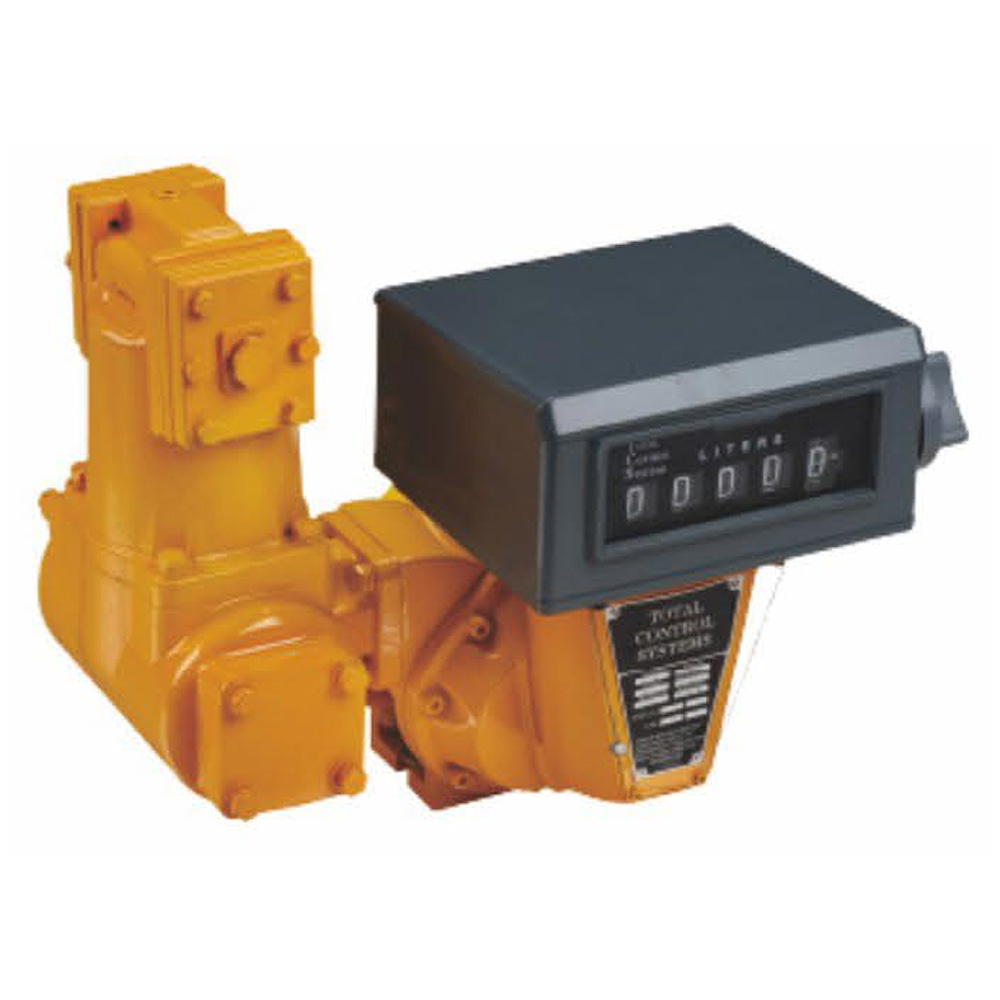

BLB-TCS-40,BLB-TCS-50,BLB-TCS-80,BLB-TCS-100-Meters

ModelDiameter

BLB-TCS-40 40mm/1.5"

BLB-TCS-50 50mm/2"

BLB-TCS-80 80mm/3"

BLB-TCS-100 100mm/4"

TECHNICAL DATA
Model	BLB-TCS-40	BLB-TCS-50	BLB-TCS-80	BLB-TCS-100
Size	40mm/1.5"	50mm/2"	80mm/3"	100mm/4"
Flow Range	25-250L/min	50-500L/min	100-1000L/min	130-1300L/min
Max.Pressure	10Bar/150PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Unit Liter/US Gallon
Meter Body	Aluminum,Cast Iron, Steel, Stainless Steel available
Seal & Gasket	Buna"N"; Viton; Teflon available
Stranier Mesh	80 for Diesel,40 for Gasoline
End Connections	ANSI Flanged,NPT, BSPT,Slip Weld available
Viscosity	30SSU-1,500,000SSU
