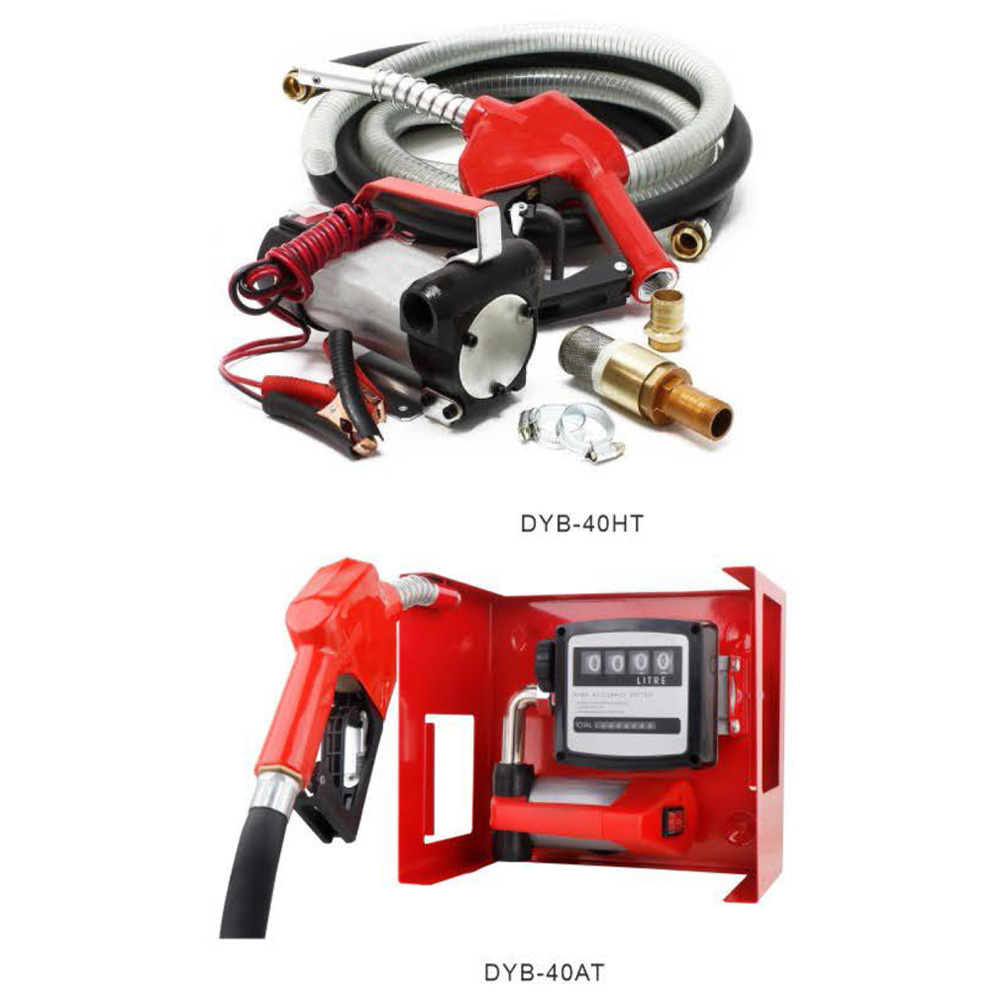

Electric Fuel Transfer Pump
DYB-40HT,DYB-40AT
SPECIFICATION
Electric self-priming compact portable rotary vane pump.
Built-in bypass valve design for safe and dependable fuel delivery.
Available to equip with fuel transfer accessories: Flow meter,
Nozzle and stationary installations.
PERFORMANCE
FLOW RATE: UP TO 40 L/MIN
VOLTAGE: DC/AC
POWER: 160W
CALIBER: INLET/OUTLET 3/4"
DANGER
ONLY FOR USE WITH DIESEL FUEL
DO NOT USE FOR/WITH
■ GASOLINE (PETROL)
■ SOLVENTS WITH FLASH POINT＜55℃
| TECHNICAL DATA | ||||||||
| MODEL | FLUIDS TYPE | FLOW-RATE L/MIN | VOLTAGE VOLT | POWER WATT | SPEED RPM | THREADED PORTS BSP | PRESSURE BAR | Suction M |
| DYB-40HT-12V |  | 40 | 12 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40HT-24V | | 40 | 24 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40HT | | 40 | 220/110 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40AT-12V | | 40 | 12 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40AT-24V | | 40 | 24 | 160 | 3200 | 3/4" | 1 | 2 |
| DYB-40AT | | 40 | 220/110 | 160 | 3200 | 3/4" | 1 | 2 |
